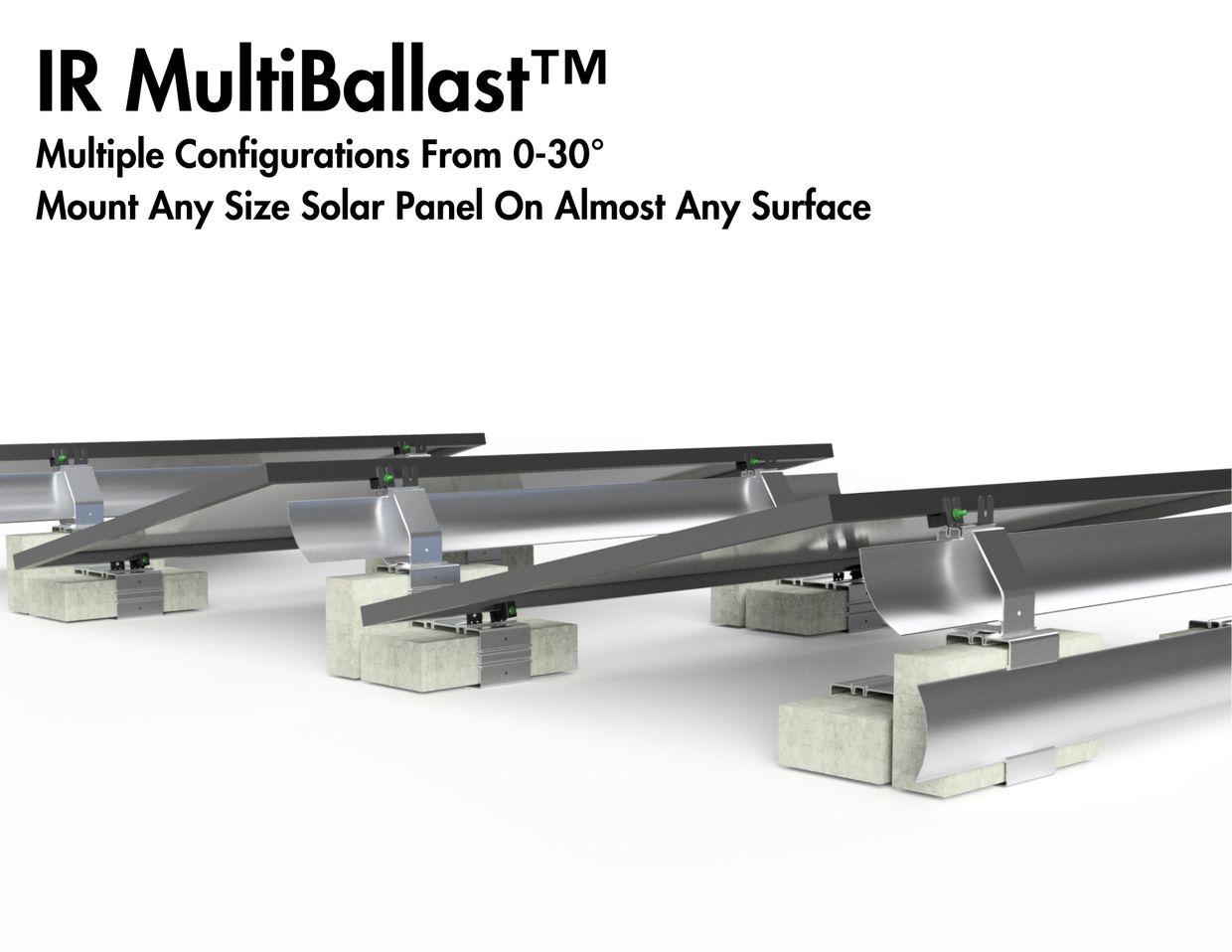

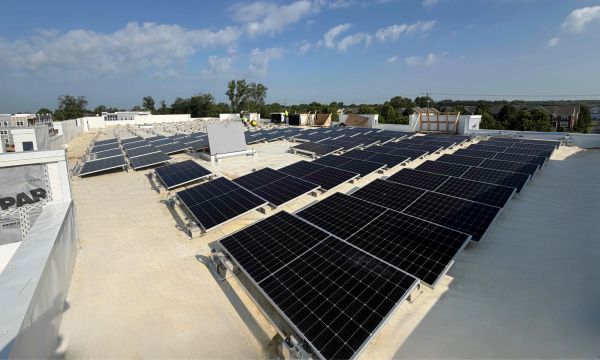

IR MultiBallast™ Modular Solar Panel Racking System
- Five Configurations Offering Sun Angles From 5-30° (5°, 8°, 13°, 20°, 30°)
- Only Four Main Components
- Capable Of Racking Any Size Solar Module On The Ground, Patios & Almost Any Roof Surface

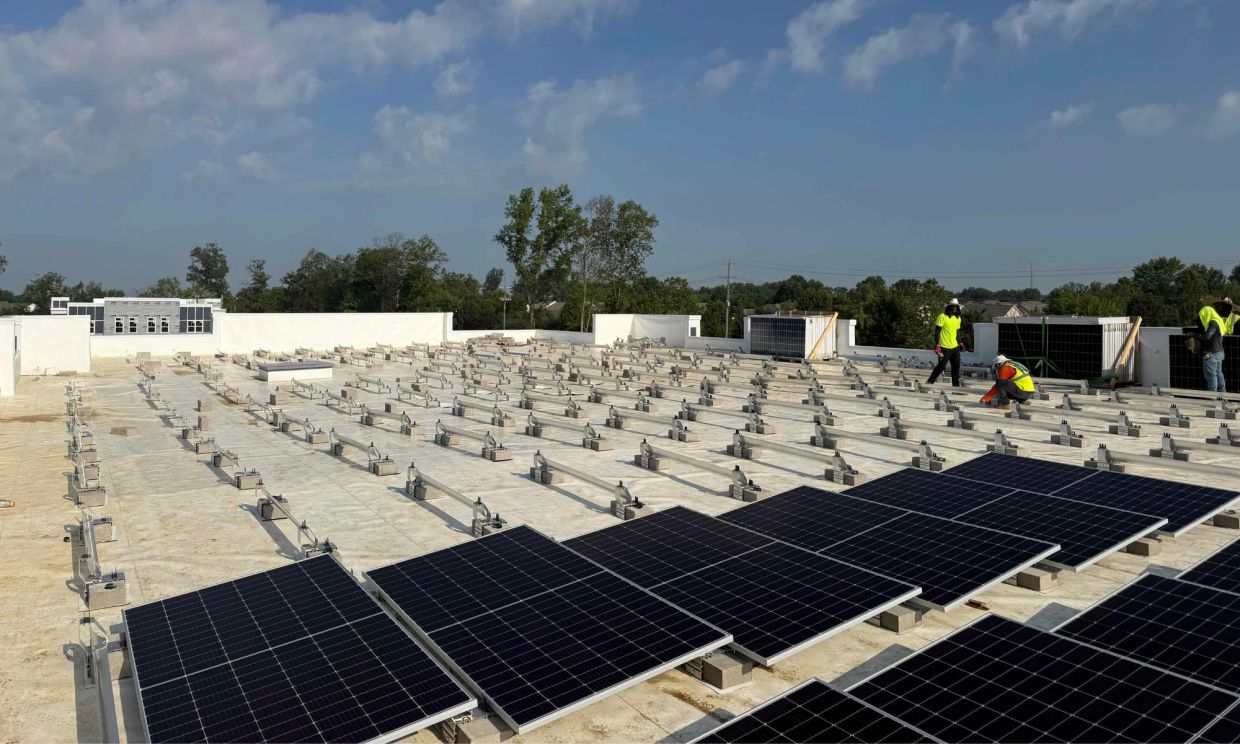

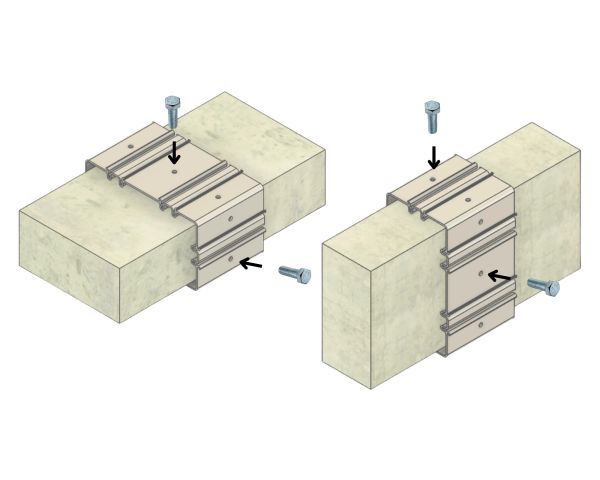

- Can Be Ballasted With Standard Cinder Blocks, Cap Blocks, Concrete Blocks, Or Bricks
- Can Be Mounted With Polyurethane Adhesive If Ballasting Is Not An Option
- Available Wind Spoiler Integrates With The Riser For Incredible Wind Resistance

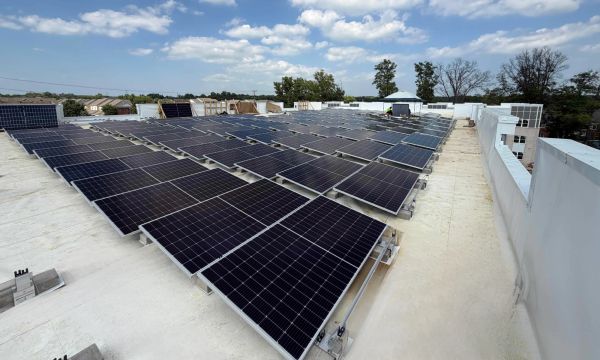

The IR MultiBallast solar panel mounting system is the most simple and versatile option on the market for almost any installation. This modular system is capable of holding any size solar panel on almost any roof with a pitch of 6/12 or less, or it can additionally be mounted on a patio or the ground. With only 4 main components, the MultiBallast comes in multiple configurations with sun angles from 5-30° in North/South facing orientation or East/West 'W' orientation with the 5° system. It can even be installed in a 0° flat orientation. All of these configurations can be mounted with our recommended industrial strength adhesive or ballasted using standard cinder blocks. We also offer a wind spoiler to deflect wind from reaching the back of the panels on higher angle orientations.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR MultiBallast Configurations
IR-W5MBCB - 5° East / West 'W' Configuration
IR-08MBCB - 8° North / South Configuration
IR-13MBCB - 13° North / South Configuration
IR-20MBCB - 20-30° North / South Configuration

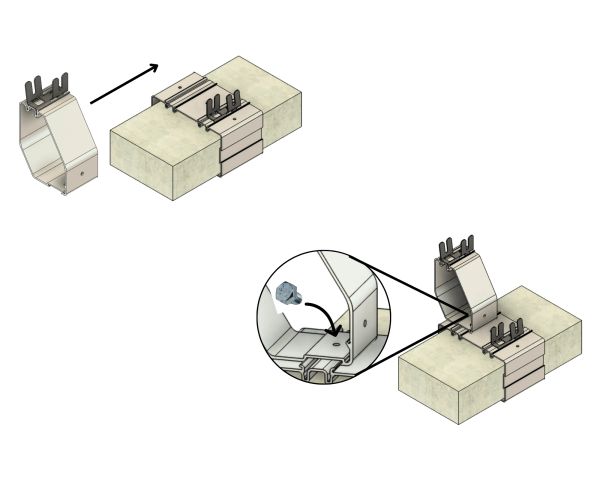

Exploded View

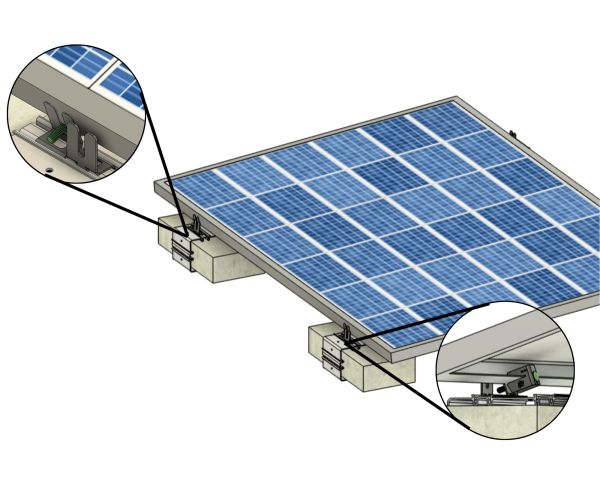

Bonding
Bonding Between Rows
For bonding between rows of modules, we offer 8" and 12" IR-B1 Bonding Jumpers that are UL 2703 recognized. The bonding jumpers have small internal bonding barbs and they clamp to the bottom inner flange of the solar modules to provide bonding from row to row. Find out more

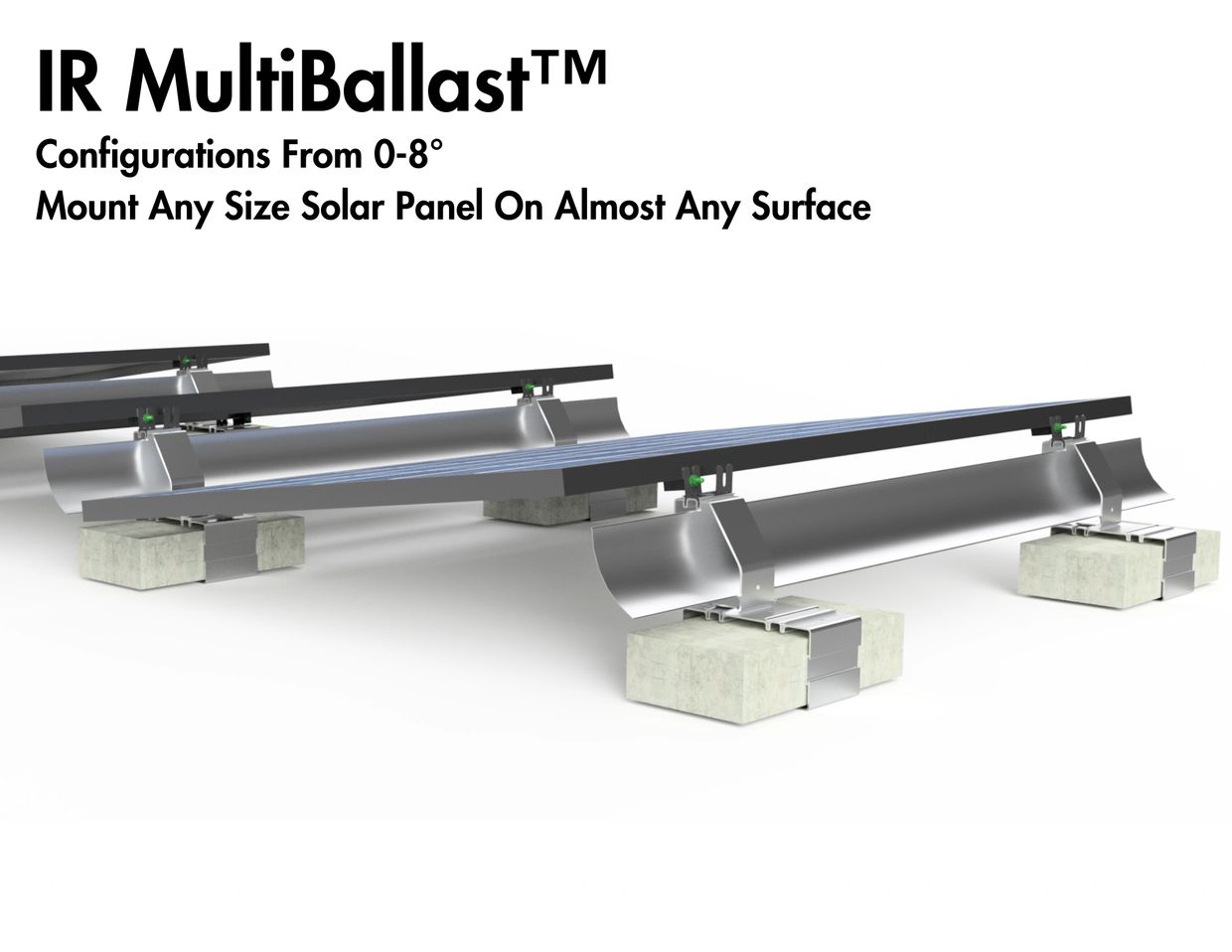

IR-W5MBCB MultiBallast™ - 5° East/West 'W' Configuration
Part Number: IR-W5MBCB0094
UPC: 85582600094
Material: Aircraft Grade Aluminum
Finish: Mill
5° universal ballasted mount for roof and ground mounting, designed to rack any size solar module using a standard cinder block for ballast and can be configured as East/West ‘W’ or flat 0°. One kit will be needed per solar panel, plus one extra to start each row and each kit includes four IR-F2 solar module bonding clamps.
Included Hardware:
- (2) Aluminum Base Mounts
- (2) H Module Mounting Brackets
- (4) IR-F2 Solar Module Flange Clamp Bonding Brackets
IR-08MBCB MultiBallast™ - 8° North/South Configuration
Part Number: IR-08MBCB0095
UPC: 85582600095
Material: Aircraft Grade Aluminum
Finish: Mill
8° universal ballasted mount for roof and ground mounting, designed to rack any size solar module using a standard cinder block for ballast. One kit will be needed per solar panel, plus two additional bases to start each row, each kit includes four IR-F2 solar module bonding clamps. One Wind Spoiler is required for each solar module (sold separately).
Included Hardware:
- (2) Aluminum Base Mounts
- (2) Aluminum Riser Brackets
- (2) H Module Mounting Brackets
- (4) IR-F2 Solar Module Flange Clamp Bonding Brackets
IR-13MBCB MultiBallast™ - 13° North/South Configuration
Part Number: IR-13MBCB0096
UPC: 85582600096
Material: Aircraft Grade Aluminum
Finish: Mill
13° universal ballasted mount for roof and ground mounting, designed to rack any size solar module using a standard cinder block for ballast. One kit will be needed per solar panel, plus two additional bases to start each row, each kit includes four IR-F2 solar module bonding clamps. One Wind Spoiler is required for each solar module (sold separately).
Included Hardware:
- (4) Aluminum Base Mounts
- (2) Aluminum Riser Brackets
- (2) H Module Mounting Brackets
- (4) IR-F2 Solar Module Flange Clamp Bonding Brackets
IR-20MBCB MultiBallast™ - 20-30° North/South Configuration
Part Number: IR-20MBCB0097
UPC: 85582600097
Material: Aircraft Grade Aluminum
Finish: Mill
20-30° universal ballasted mount for roof and ground mounting, designed to rack any size solar module using a standard cinder block for ballast. Can achieve a 30° tilt when mounted on a 10° slope. Each kit can mount one solar panel and includes four IR-F2 solar module bonding clamps. Two Wind Spoilers are required for each solar module (sold separately).
Included Hardware:
- (6) Aluminum Base Mounts
- (2) Aluminum Riser Brackets
- (4) H Module Mounting Brackets
- (4) IR-F2 Solar Module Flange Clamp Bonding Brackets
IR MultiBallast™ Base (10 Pack)
Part Number: IR-MBMA0098
UPC: 85582600098
Material: Aircraft Grade Aluminum
Finish: Mill
Ten pack of bases for the IR MultiBallast system. Two will be needed to start each row for the IR-08MBCB and IR-13MBCB MultiBallast systems. Each base includes an H Module Solar Module Mounting Bracket.
Included Hardware:
- (10) H Module Mounting Bracket
IR MultiBallast™ Wind Spoiler (10 Pack)
Part Number: IR-MBSA0099
UPC: 85582600099
Material: Aircraft Grade Aluminum
Finish: Mill

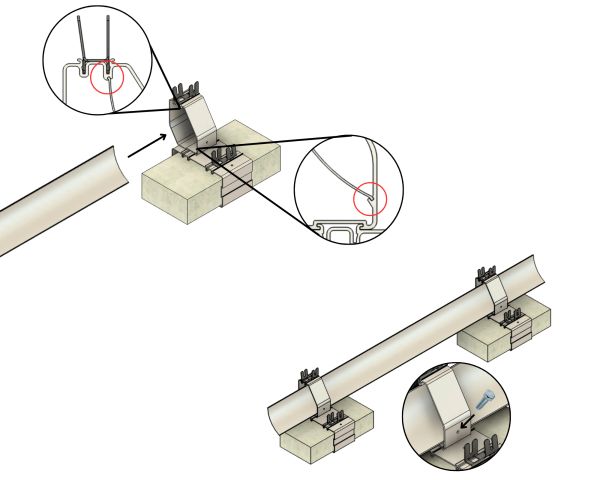

Ten pack of MultiBallast Wind Spoilers. The Wind Spoiler is required for all North/South facing MultiBallast systems and extra wind spoilers can optionaly be used on the back row of the IR-13MBCB MultiBallast.
Included Hardware:
- None
