IR-T1 TileBallast™ No Penetration Tile Roof Mounting System

  • Aeronautical Wind Tunnel Tested at 165 MPH with 3:1 Safety Factor
  • No Penetration
  • No Tile Removal
  • 4x Faster Install Times
  • For Use With All Rail Systems
  • Integrated Flex Point Prevents Bolt Tension From Cracking Tiles

*Old version (IR-T1A) shown above

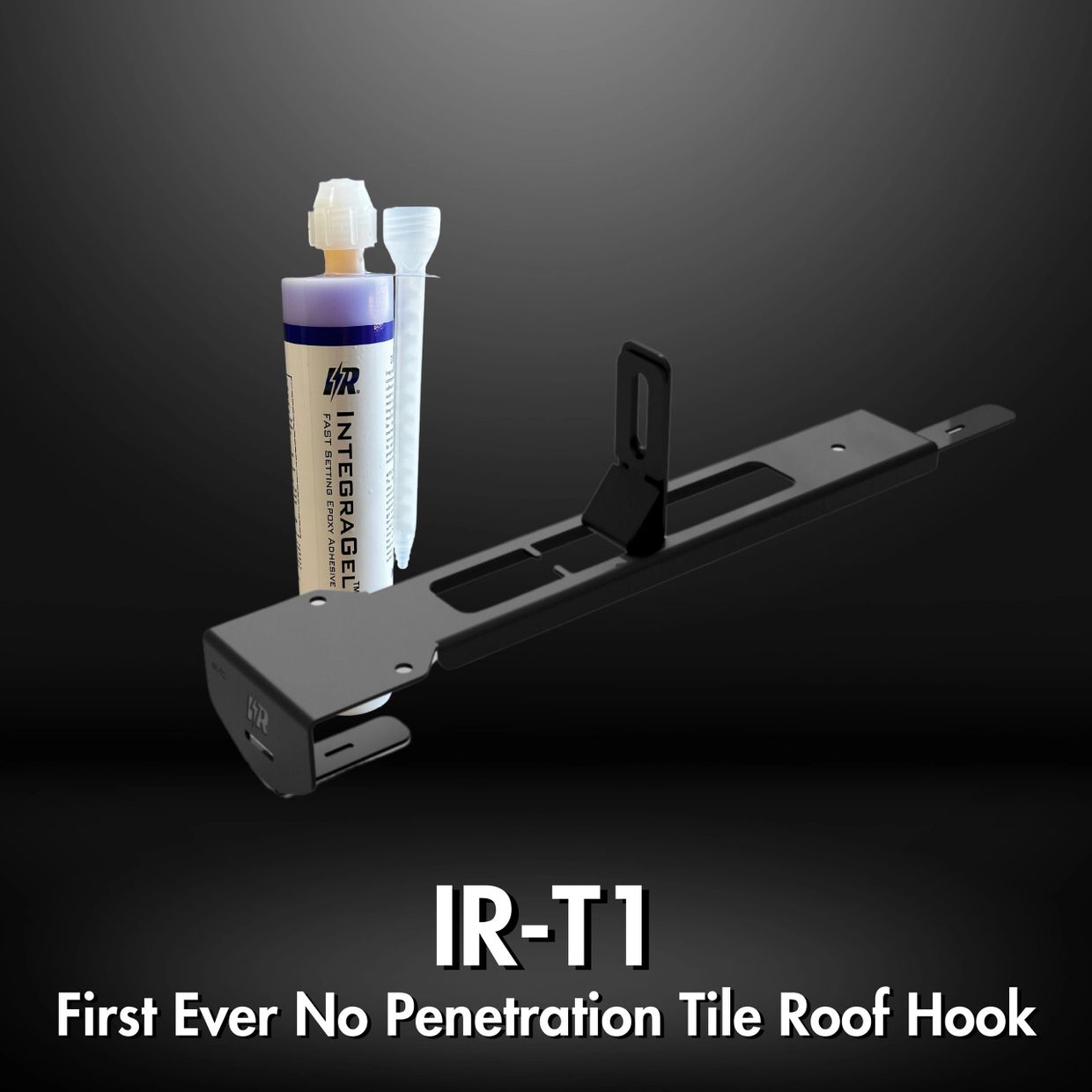

IR-T1 TileBallast™ No Penetration Tile Roof Mounting System

The IR-T1 is the first of its kind and the only tile roof hook that requires no removal of tiles and no roof penetration at all. The IR-T1 TileBallast™ System is 4x faster to install than traditional tile roof hooks and much stronger, since our proprietary installation system actually increases the overall strength of the entire roof structure. When installed using our test proven IntegraGel Fast Setting Industrial Strength Two Part Epoxy, each bracket uses the weight of the heavy concrete tiles which are nested and overlapping each other. The IR-T1 has been tested at the George E. Boeing Aeronautics Department Wind Tunnel and is proven to withstand over 165 MPH wind speeds with a 3:1 safety factor, making it the most extensively tested solar roof mounting bracket ever. One tube of IntegraGel Epoxy is good for up to ten mounts.


Each IR-T1 comes with a strong, integrated upright mount that can be attached to any rail system. The simplicity of this system allows for extremely fast and easy installations. With no need to remove and replace tiles on the roof, installers are much less fatigued on large jobs. Many installers see increased sales with home-owners that are worried about potential leaks and love the benefits of a non-invasive system.


*Works with most all styles of concrete roof tiles with at least 1.25 inch thickness and 11.75-15.5 inch spacing. Only recommended for use with concrete roof tiles.


This product conforms to UL 2703 Mechanical and Bonding requirements.

Step 1: Measure and Mark

Step 2: Apply Recommended Adhesive

Step 3: Slide IR-T1 Tabs Under Upper & Lower Row Of Tiles

Step 4: Attach INCLUDED IR-L1 Bracket

Step 5: Place Next Row

Step 6: Mount Rail to Upright

STEP 7: INSTALL Solar MODULES ONTO RAIL System

*Some media may show older versions of the IR-T1. Please refer to the image at the top of this page

COMPATIBLE WITH THESE RAIL SYSTEMS:

FEATURES

Aeronautical Wind Tunnel Tested at 165 MPH with 3:1 Safety Factor

 The IR-T1 TileBallast™ Roof Mount has been tested to withstand over 165 MPH with a 3:1 safety factor in the William E. Boeing Department of Aeronautics Wind Tunnel, making it the most extensively tested solar roof mounting bracket ever.

Phoenix National Laboratories Hydraulic Load Tested for Wind and Snow Load Simulations

The IR-T1 has been rigorously tested by Phoenix Nationals Laboratories with multiple simulated wind and snow load hydraulic tests. This outdoor lab testing shows that the IR-T1 can withstand almost 200lbs of direct uplift per mount, allowing for a 3:1 safety factor with 165 MPH winds.

No Tile Removal and No Roof Penetration

 The IR-T1 is the first tile roof hook that is 100% non-invasive, and its no penetration design along with our patent pending bonding method actually increases the strength of the entire roofing system. No roof warranty issues to deal with, and a huge selling point for homeowners to go solar without worrying about a leaking roof after the solar installation is complete.

For Use With All Rail Systems

The integrated upright allows for the mounting of any rail system like any standard tile hook. The two piece design of this upright creates a very solid support for any solar system, but offers just enough flexibility to withstand up to 150 mph wind speeds.

Lightning Fast Install

 With its 100% non-invasive design, installation times are 4x faster than traditional tile roof hooks. The IR-T1 is by far the fastest and strongest tile roof hook available today.

Innovative Engineering

 The IR-T1 utilizes a super high-strength tested concrete adhesive system to bond three roof tiles together along with the IR-T1's two integrated mounting hooks bonded as one piece. This unique system creates a large heavy ballasted foot out of the three concrete roof tiles, and these bonded roof tiles are also held down and nested in place by five additional overlapping tiles.

IR-T1 No Penetration TileBallast™ Solar Module Mounting System

Part Number: IR-T1TB1032

Material: 2mm Carbon Steel

Finish: Black Zinc


Engineered for 100% non-invasive tile roof installations. Roof brackets can be installed in less than 2 minutes and they do not require tile removal or any roof penetrations. Each mount has an integrated upright for mounting with all solar module rail systems. Available as single mount or ten pack at reduced price.


Additional Hardware (Included):

(2) M8-1.25x24mm Black Tile Tension Bolts

*Multiple Patents Pending

PRODUCT RESOURCES

#

Install Instructions

#

Product Videos

#

Product Information

#

Product Warranty

#

Engineering and Datasheets

Where to buy

Frequently Asked Questions

Please reach out to IntegraRack@gmail.com if you cannot find an answer to your question.

Yes, the integrated upright has an open slot similar to most standard tile roof hooks and can be used with any standard rail system.


The IR-T1 is stronger and more stable than most traditional tile roof hooks and is capable of withstanding up to 150 mph winds and 175 lbs of uplift per mount.


With no need to remove the existing roof tiles or penetrate the roof in any way, there is no risk of leaks, broken roof tiles, or damaged trusses. Using our patent pending bonding method with the IntegraGel Epoxy, each IR-T1 actually bonds multiple tiles together, making the roof stronger and more secure than before.


The IR-T1 is compatible with Flat, S and W style concrete roof tiles with 11.75" - 15.5" row spacing.
